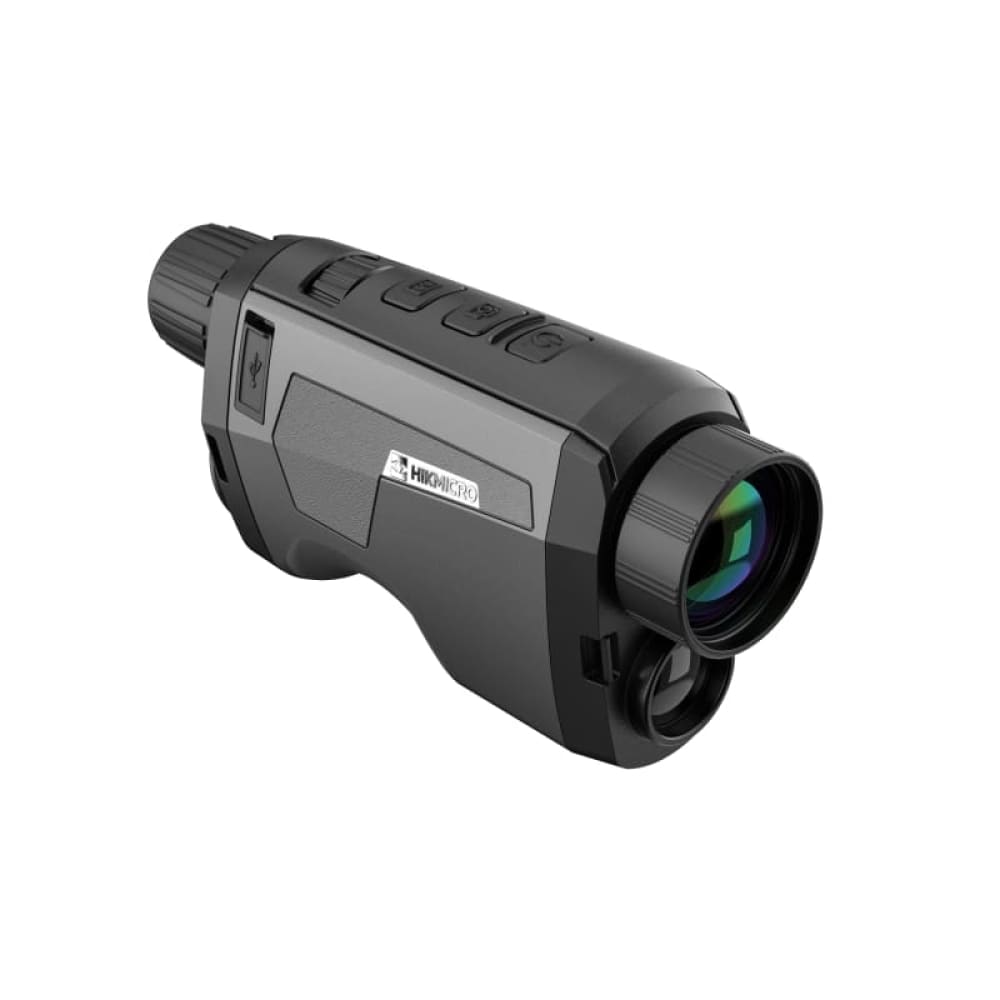

Gryphon 35mm GH35

Gryphon 35mm GH35

SKU: GH35

MSRP: Before 16,745 now 13,399 DKK Incl. VAT
Offer price: 10995 DKK Incl. VAT

HikMicro's Gryphon model is the brand new shot at thermals. The new Gryphon is a fusion of thermal and digital. This means that by purchasing an IR lamp, you can use all the properties from the thermal and all the properties from the digital. This means that you can now see appendages, teeth and other things on the animal that are not warm.

Video function: With all HikMicro products you can record video of what you see in the product. This means that you can capture shots with Thunder, and capture cool hunting experiences with Lynx, Owl and Gryphon.

Specifications:
- 384x288 sensor
- 35 mm lens
- Up to 1800 meters
- Up to 6 hours of battery
- IP67 waterproof
- Weight: 480 g.

3 year warranty on all HikMicro products

Technical specifications

Thermal module

  • Image Sensor: VOx Uncooled Focal Plane Arrays
  • Max. resolution: 384 × 288
  • Frame Rate: 50 Hz
  • Pixel pitch: 12 μm
  • Response waveband: 8 μm to 14 μm
  • NETD: <35 mK (@25°C, F#=1.0)
  • Lens (focal length): 35 mm
  • Detection range: 1800 m
  • Focusing method: Manual
  • Field of view: 7.5° × 5.7°(H × V)
  • Mine. focusing distance: 3 m
  • Aperture: F1.0
  • Magnification: 3.35
  • Digital Zoom: 1×, 2×, 4×, 8×

Optical Module

  • Image sensor: 1/2” Progressive Scan CMOS
  • Focal length: 22 mm
  • Wavelength: 400 nm to 1000 nm
  • Max. resolution: 1920 × 1080
  • Mine. illumination: 0.001 Lux @ F1.0

Image display

  • Frame Frequency: 50 Hz
  • Display: 0.39 inch, OLED, 1024 × 768
  • Picture Mode: White Warm, Black Warm, Red Warm, Fusion, Visible, Image Fusion
  • FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Smart Function

  • Hot Spot: Yes
  • Hot Track: Yes
  • Standby Mode: Yes

System

  • Record video: Yes
  • Take Snapshot: Yes
  • Built-in memory: 16 GB

Power supply

  • Power: Removable Battery
  • Battery type: An 18650 battery
  • Battery operating time: 5 hours

In general

  • Protection level: IP67
  • Dimension: 87.2 mm × 51.2 mm × 167.8 mm (3.43 inch × 2.02 inch × 6.61 inch)
  • Weight: 480 g
  • Working temperature: -30 to 55°C
  • Eye distance: 19.5 mm

The content of the package

  • Quick Start Guide
  • Cloth
  • USB cable
  • Bag
  • Wrist strap
  • Lens protector
